AudioKT-DANTE64 KLARK TEKNIK network module DANTE of DN9650 Midas
Quantity
ex
Project List Available
Description
Characteristics
Share
Product file

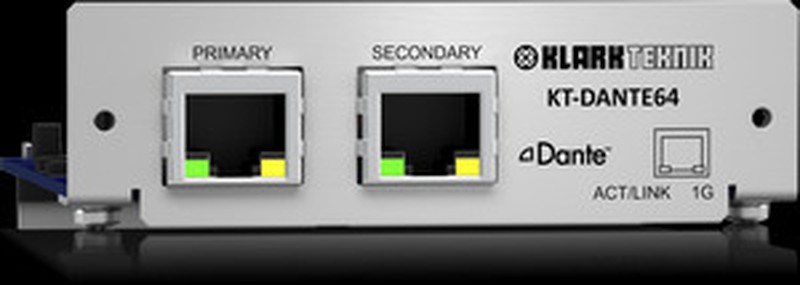

The KT-DANTE64 network module provides Audinate Dante compatibility for the KLARK TEKNIK DN9650 and DN9652 Network Bridges, and features up to 64 or 32 bidirectional channels at 48 kHz or 96 kHz respectively. KT-DANTE64 offers high performance direct-to-computer audio recording, flexible routing and true Plug and Play technology with low latency, low jitter and sub-microsecond synchronisation. Dante is Internet Protocol (IP) compliant which allows operation over conventional Ethernet networks running on off -the-shelf computer networking hardware, and does not require dedicated network infrastructure.
Dante’s Zero configuration protocol allows Dante-enabled devices to identify and configure themselves automatically when connected to a network. Dante-enabled devices discover one another over the network and learn each other’s capabilities, including the number of input and output channels, sample rates and bit depths supported. A Dante-enabled device connected to a network will also automatically setup its own network configuration.
KT-DANTE64 is electrically and mechanically compatible with the industry standard Cirrus CM-1 format.
Dante’s Zero configuration protocol allows Dante-enabled devices to identify and configure themselves automatically when connected to a network. Dante-enabled devices discover one another over the network and learn each other’s capabilities, including the number of input and output channels, sample rates and bit depths supported. A Dante-enabled device connected to a network will also automatically setup its own network configuration.
KT-DANTE64 is electrically and mechanically compatible with the industry standard Cirrus CM-1 format.
Audinate Dante* network module for Klark Teknik DN9650 and DN9652 network bridges and Midas NEUTRON-NB expansion module/Compatible with Klark Teknik DN9650 and DN9652 network bridges and MidasNEUTRON-NB expansion module/Enables multichannel recording and playback through Dante Virtual Soundcard (PC or Mac* computer)/Primary and secondary Ethernet interfaces for dual-redundant Dante networking/Operates from internal Dante network Precision Time Protocol (PTP) clock or external clock via host unit/Optional Dante Controller software for remote configuration (PC or Mac computer)/LED indicators monitor network activity and speed/10-Year Warranty Program*/Designed and engineered in England/Caracteristiques:Module format: Cirrus CM-1 compatible/Sample rates: 44.1/48/88.2/96 kHz/Audio channels (44.1/48kHz):Up to 64 bidirectionalchannels/Audio channels (88.2/96kHz): Up to 32 bidirectional channels/Sample Bit Depth: 16, 24 or 32 bits per sample/Audio Buffering: Up to 2000 samples per channel/Clock Source: Onboard word clock or external word clock/Interfaces: Primary and Secondary Dante network interfaces/
Height:31 mm (1.2")/Width:110 mm (4.3")/Depth:89 mm (3.5")
Height:31 mm (1.2")/Width:110 mm (4.3")/Depth:89 mm (3.5")
