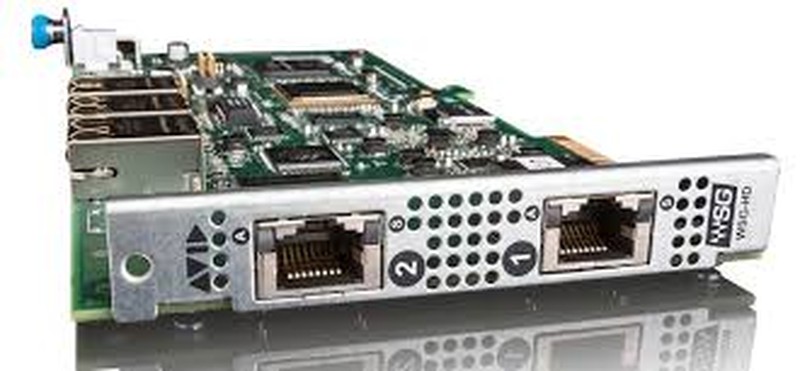

The WSG-HD card offers the simplest set-up of any console, enabling you to be up and running in mere minutes. The card installs easily into the Avid VENUE | E6L engine, providing a direct link to your Waves SoundGrid server using a simple Cat5e cable. Because there’s no need for an additional network switch or external computer, you can reduce costs while eliminating the hassle of dealing with extra hardware.
System requirements
VENUE | S6L system running VENUE 5.7 or later software
Waves SoundGrid Server One or Extreme Server—Impact Server not supported at this time
Waves Central for VENUE (to install and activate Waves plugins)
Waves SoundGrid Rack for VENUE license
Audio paths 128 voices—Each voice occupies a single path, so stereo channels occupy two paths, while a sidechain occupies an additional path
Plugin support Supports up to 128 Waves SoundGrid Rack instances—Each Rack instance can support up to 8 Waves plugins for a maximum total of 1,024 Waves plugins per WSG-HD card
Card connections Two RJ45 ports for connecting up to two Waves SoundGrid servers via Cat5e cables
Host connection PCIe for installation in any Avid VENUE | E6L engine; only one WSG-HD card may be installed per engine
