LightingMartin Atomic COLORS color Change 10 colors
Quantity
ex
Project List Available
Description
Characteristics
Share
Product file

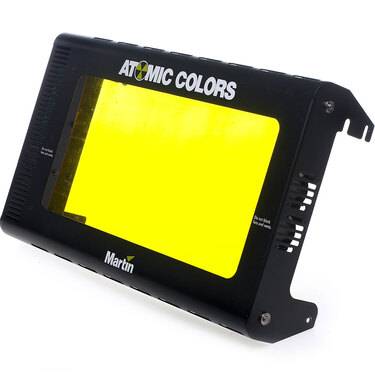

The Atomic Colors is a specially designed colour tuner accessory that attaches to the front of both the original Atomic 3000 DMX and the new Atomic 3000 LED, enabling up to ten vibrant strobe and colour shutter effects. When combined with the Aura backlight and the main output of the Atomic 3000 LED, it also delivers spectacular three-dimensional visual effects.
Length: 470 mm (18.5 in.)
Ancho: 273 mm (10.7 in.)
Altura: 102 mm (4.0 in.)
PESO: 2.5 kg (5.5 lbs.)
Color gel thickness: 0.075 mm (0.003 in.) - 0.125 mm (0.005 in.)
DYNAMIC EFFECTS
Color gel scrolling: 10 standard colors supplied, custom color gel strings can be fabricated by customer
CONTROL AND PROGRAMMING
Control options: DMX
Setting and addressing: Three-button LED control panel
Cooling fan speed control: Onboard control panel, DMX
Gel scrolling speed, 'gel saver' mode, light-activated fan operation: Onboard control panel
DMX channels: 1 or 2
DMX compliance: USITT DMX512/1990
CONSTRUCTION
Housing: Steel
Color: Black
Acabado: Electrostatic powder-coated
Protection rating: IP20
INSTALLATION
Mounting points: Fastens to Atomic fixture
Location: Indoor use only, mounted on Atomic fixture
Orientation: Any
CONNECTIONS
Combined power and DMX data from Atomic fixture: 4-pin XLR
ELECTRICAL
DC Power: 24 V (+/- 10%)
DC current: 0.55 A (max.)
Power source when used with xenon tube-based Atomic 3000 DMX: MPU-02 or MPU-08 external PSU
