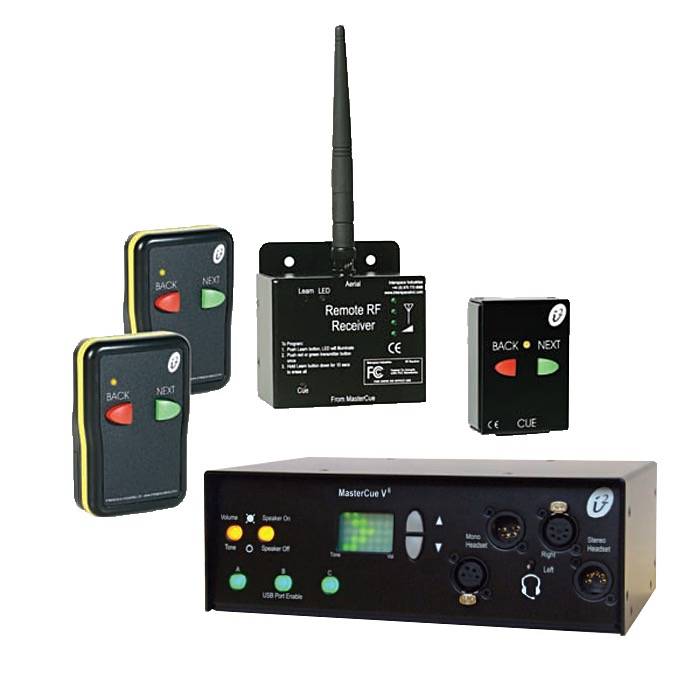

MasterCue V6 now has 3 USB ports for multiple computers. The 4 and 5 plug loop now on the front of the unit allows easy access to the intercom’s keypad. The V6 displays signals visually, as well as producing audible signaling sounds via the built-in speaker or headphone output. Comes with two double-button controls, with which the presenter can point to the next or previous entry during the presentation. A confidence lamp provides the presenter with a clear visual confirmation, on stage and in colour codes, of his indications. The system is easily installed using standard 3-pin XLR cables.
Cue4 enhances the industry-proven MasterCue USB range, now providing for the significant expansion of PowerPoint presentation cueing control. Cues sent to the MasterCue system from either an event operator or the presenter can now be electronically distributed to multiple computers running different versions of the same presentation.
Ensuring the main, backup, translated, preview and/or note versions of the presentation remain perfectly synchronised at all times. Should the main computer hang or some other problem occur, for example, the backup computer can be switched to at any time, knowing it has remained in step with the main version.
Housed in a metal case with simple toggle switches for reliability and ruggedness. Four independently switched USB ports allow up to four computers to be controlled, giving the operator control over which outputs will follow the main cue or be bypassed for manual control in the case of a fault.
Cue4 has a loop output which provides for even further expansion through the connection of additional Cue4 units, thus providing for the simultaneous control of multiple presentation versions on any scale.
Signals:
RF 434.075Mhz
RF signal type FM FSK
Audio out Balanced 600 Ohms 1Vp-p Variable
12V switching signal on peripherals
Connectors:
RF Receiver: BNC for aerial and XLR female
Main unit: male XLR for RF Receiver input
Female XLR for wired button input
Male XLR for confidence lamp
Audio Intercom, lop through for 4 pin and 5 pin XLR,
Male and Female.
¼” jack socket for balanced output’
3x USB series B connector for Computer control
1x USB series A connector for keyboard programming
Dimensions and weights mm (inch):
Main Unit DxWxH: 160 (6 ¼””) x 255 (10”) x 93 (3 5/8”) (inc feet)
Weight: 1050g (2.31lbs)
Transmitters
DxWxH: 100 (4”) x 65 (2 1/2”) x 25 (1”)
Weight: 100g (3.60z)
RF Receiver
DxWxH: 90 (3 1/2”) x 90 (3 1/2”) x 50 (2”)
Weight: 178g (6.3oz)
Wired buttons
DxWxH: 90 (3 1/2”) x 60 (2 4/10th”) x 33 (1 3/10th”)
Weight: 166g (5.9oz)
Aerial LxDia: 142mm (5 9/16”) x 14mm (17/32”)
(433 MHz)
Weight: 25g (1oz)
Power: International Power Supply 100-240VAC
1.0A Max 8W Max 47-63Hz IEC connector
Cue4
Up to 4 Cue4 units can
be attached to the Main
unit to give 19 computer
to control.
Specifications
Signals:
Propriety data connect from MasterCue USB and Cue4
4 USB outputs to Computer
Connectors
2 x 6pin mini din
4 x USB series B
Accessories included
1 x 6 pin mini din to mini din data connect cable
4 x USB series A-B lead
Dimensions and weights mm (inch)
125 (4 3
⁄ 4”) x 75(3”) x 35 (1 1
⁄ 2”) (inc feet)
Weight 200g (6oz)
Power
USB powered
