LightingVL2500 SPOT VARI*LITE 700W MSR effect head
Quantity
ex
Project List Available
Description
Characteristics
Share
Product file

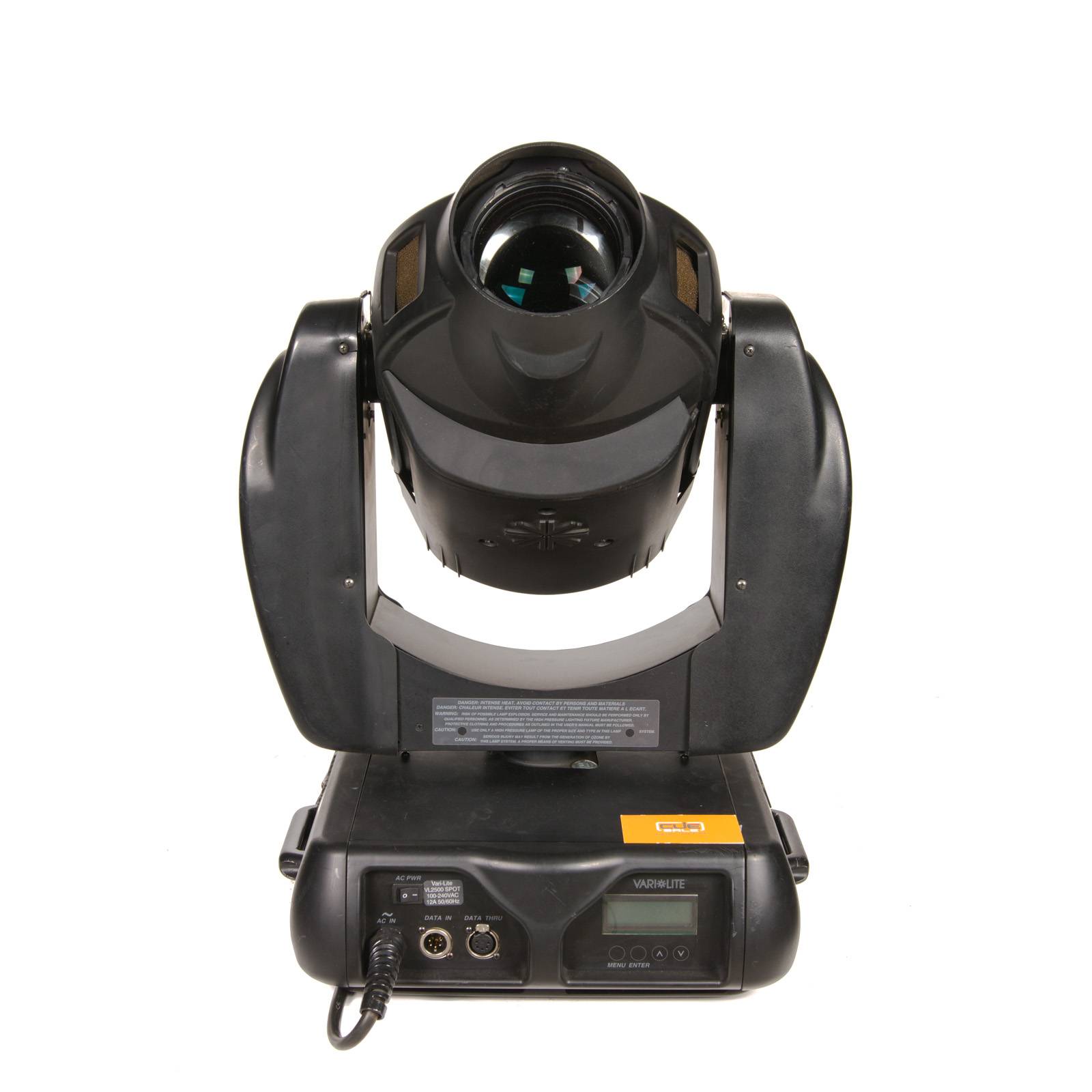

The VL 2500 Spot from Vari*Lite's popular VL series is a light, fast and powerful spotlight with its 700 MSR SA lamp. Motorized zoom lens from 18.5° to 42°. Mechanical iris to adjust beam size. Subtractive trichromacy. Modular 12-position color wheel with dichroic color filters. 6 position rotating gobo wheel with 5 indexable gobos plus white. 12 position modular fixed gobo wheel. Glass dimmer wheel for smooth dimming. Strobe effects guaranteed by a double blade. Variable focus for focusing the projected gobos or for adjusting the beam sharpness. Three-phase stepper motors for PAN/TILT axes. Resolution: 0.3°. Output: 14,500 lumens. Power supply: 90-264V AC power supply, 4-12A depending on the supply voltage. High precision cold glass reflector. Ambient operating temperature: -29° to +50°C. Cooling by silent forced ventilation.
AMPLITUDE :
540° (pan), 270° (tilt)
LAMPE :
MSR 700 SA
ZOOM MOTORISÉ :
18,5° à 42°
TRICHROMIE :
cyan, magenta, jaune
ROUE MODULAIRE :
11 couleurs
ROUE DE GOBOS ROTATIFS INTERCHANGEABLES :
6 positions
ROUE DE GOBOS FIXES INTERCHANGEABLES :
12 positions
GRADATION MÉCANIQUE LINÉAIRE :
0 à 100 %
VOLET/STROBE ULTRA RAPIDE :
(2 lames)
FOCUS MOTORISÉ :
Oui
IRIS DIAPHRAGME MOTORISÉ :
Oui
RENDU LUMINEUX :
14 500 lumens
DIMENSIONS (L X W X H) :
425 x 467 x 689 (mm)
POIDS :
26,9 Kg
CONSOMMATION / PUISSANCE :
1000
CANAUX DMX :
22
