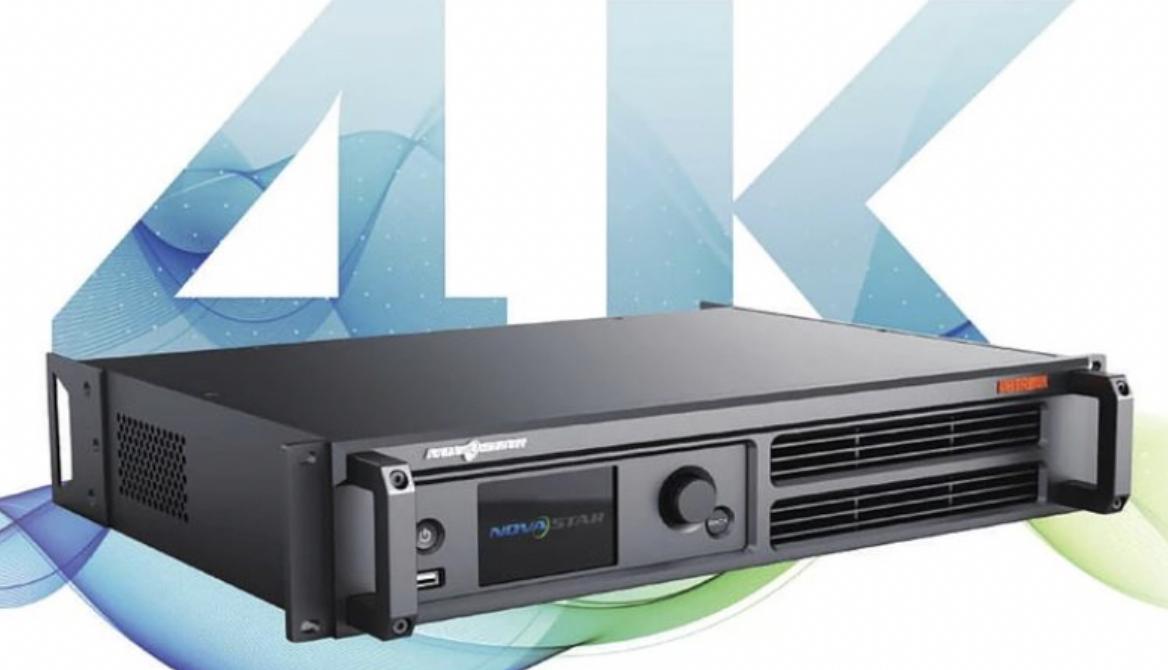

VideoNovastar MCTRL-4KFS Led controller(Res 3840X2160)
Quantity
ex
Project List Available
Description
Characteristics
Share
Product file
The MCTRL4K is a LED display controller with ultra-large loading capacity developed by NovaStar. A single unit features a loading capacity of up to 4096×2160@60Hz. It supports any custom resolutions with the maximum width or height up to 7680 pixels, meeting the on-site configuration requirements of ultra-long or ultra-wide LED displays.
Control
• Ultra Large Capacity, Resolution 4K x 2K@60Hz
• Resolution up to 8K width
• Detailed control of Video Walls via LCTMars PC-Software or SmartLCT Mac OS X Software
• Multiple Video Inputs
• Multiple Outputs : 16 RJ 45 Ports & 4 Optical output ports
• Screen Configuration via Web Interface
• Wireless Remote Control
• Can be cascaded via USB or GenLock for huge screens
Resolution
• Max resolution capacity : 8.3 million pixels
• 4096 x 2160@60Hz
• 7680 x 1080@60Hz
• 12bit/10bit/8bit HD Video Source
• Supports HDCP, 1080i/P, 480i, 576i, 720P, PAL/NTSC, HDR (HDR10&HLG)
• Support Ultra-High Resolution settings with NVIDIA Graphic Cards
• Supports both Mosaic and Multi-Card working modes for Dual-Link DVI inputs
Construction
• Aluminium Metal Housing
• Rack Mountable
Electrical
• Multi-voltage operation: AC 100-240V, 50/60Hz
• Power Draw: 30W
• Operating Temperature: -20°C - +60°C
Connections
• Inputs
2x Dual DVI-D, up to 8.3 million pixels
1x HDMI 2.0, up to 8.8 million pixels per input
1x DP 1.2, up to 8.8 million pixels per input
1x RJ45 Network LAN Connector for IP-based Control
1x Locking IEC Power connector
• Outputs
16x RJ45 4Gigabit Ethernet Screen outputs
4 x Optical Screen Output
1x Genlock Loop Loop
• USB
2x USB Type A port to connect USB Stick or cascade OUT
1x USB Type B control interface for connection with PC or Cascade IN
• DP, HDMI, USB, DVI, CAT5 & Power cable included
Dimensions & Weight
• Dimensions (LxWxH): 482.6 x 372 x 96mm
• Weight: 4,6 kg.
