VideoPanasonic Remote AW-RP150G for PTZ Camera UE150K
Quantity
ex
Project List Available
Description
Characteristics
Share
Product file

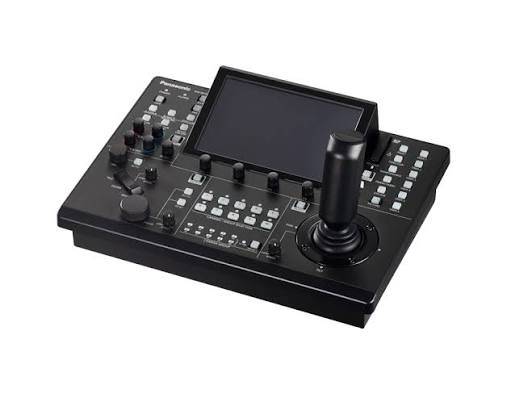

The AW-RP150 is the latest remote camera controller model to be added to Panasonic's full range of professional PTZ cameras. It will have the same extraordinary functions of the AW-RP120 and AW-RP50 models and incorporates some notable improvements with respect to them, including a new joystick that is operated with one hand (which controls the PTZ functions or focus) and a large LCD touch screen to monitor and select settings from the menu.
A joystick-mounted swing lever controls rotation and tilting movements for greater focus and zoom control, as well as allowing intuitive one-hand operation.
The integrated touch screen allows for simple and fast operation of all the essential functions of the camera.
General -> Power Requirements 12 V DC (10.8 V to 13.2 V)
General -> PoE PoE+ DC 42 V to 57 V (Camera Input,)
General -> Current Consumption 1.0 A (Connector Input), 0.6 A (PoE+ power supply)
General -> Ambient Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
General -> Ambient Operating Humidity 10 % to 90 % (no condensation)
General -> Storage Temperature -20 °C to 50 °C (-4 °F to 122 °F)
General -> Weight Approx. 3.2 kg (7.05 lb)
General -> Dimensions W 342 mm x H 178 mm x D 245 mm (13-15/32 inches x 7 inches x 9-21/32 inches) (excluding protrusions)
