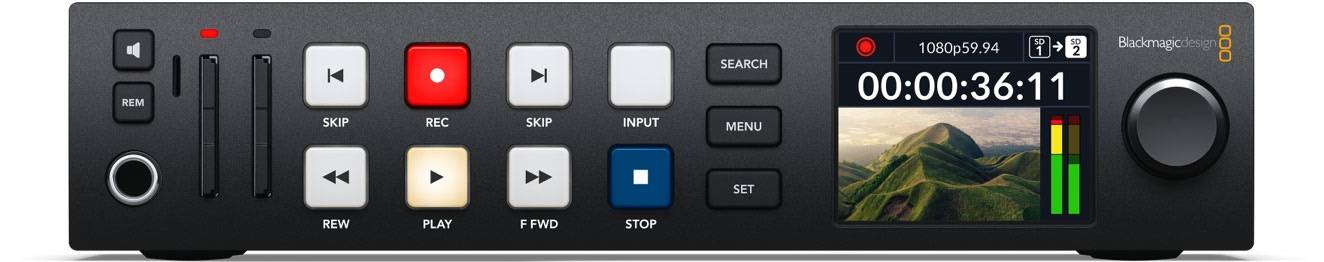

This larger model offers all the features of the Mini version as well as other connection controls. Its SDI 6G technology allows you to record and play ProRes files at 30 f/s (UHD). In addition, it supports high dynamic range imaging and includes a derived SDI output, two additional 6G SDIs to play the alpha channel and main signal at 1080p60 resolution, an HDMI input and a 3G SDI output for monitoring images with overlay information. By pressing a button on the front panel, it is possible to control other devices via the RS-422 port, and the XLR connector makes it easy to power the equipment using direct current. Other improvements include advanced playback controls, headphone connection and built-in speaker.
Connections
SDI video inputs
1
SDI outputs
2
SDI monitoring outputs
1
Transmission speeds
270 Mb/s, 1.5 Gb/s, 3 Gb/s, 6 Gb/s.
HDMI 2.0 inputs
1
HDMI 2.0 outputs
1
Integrated speaker
Monoaural
Audio output
1 x 6.35 mm for headphones.
Screen
2.2" LCD screen
Connections for time code
1 BNC entry, 1 BNC exit
Connections for reference signals
1 BNC input, 1 BNC Tri-Sync or Black Burst output.
SDI audio inputs
16 integrated channels.
SDI audio outputs
16 integrated channels.
HDMI audio inputs
8 integrated channels.
HDMI audio outputs
8 integrated channels.
Remote control
1 RS-422 input, 1 RS-422 output.
Recording settings
Using a user interface or Ethernet protocol for the Blackmagic HyperDeck model.
Ethernet
1 Gb/s.
Computer interface
1 USB Type-C 3.0 (up to 5 Gb/s) for recording on external drives, detecting the drive as a webcam, setting it up and updating the software
