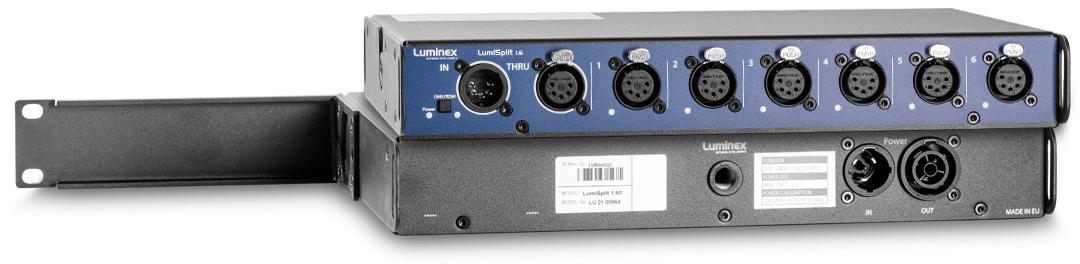

LumiSplit also comes in a 1.6 truss
version. This device has the same
functionalities as LumiSplit 2.10
(except for A/B zone selection,
merging mode and backup mode,
because the device has only one
input). Thanks to the included long
mounting ears, the 1U unit can also
be mounted in a rack and will perfectly line up with a LumiSplit 2.10.
DMX zone selection: No
HTP/LTP merger: No
DMX backup mode: No
Regeneration mode: Yes
RDM discoverable: Yes
RDM filtering: Yes (per input and output)
DMX port isolation: Optical and galvanic isolation per port
Short circuit protection: Yes
DMX port termination/biasing: Yes
Dark mode: Yes
User presets: 2
Lockable front panel: Yes
Power connectivity: 1x Neutrik powerCON TRUE1 In/Out
Power input: 100-240V AC; 16A; 50-60Hz
Power output: Maximum 15A
Power consumption: Maximum 15W
Fuse: Not user-serviceable fuse
