LumiSplit also comes in a 1.6 truss
version. This device has the same
functionalities as LumiSplit 2.10
(except for A/B zone selection,
merging mode and backup mode,
because the device has only one
input). Thanks to the included long
mounting ears, the 1U unit can also

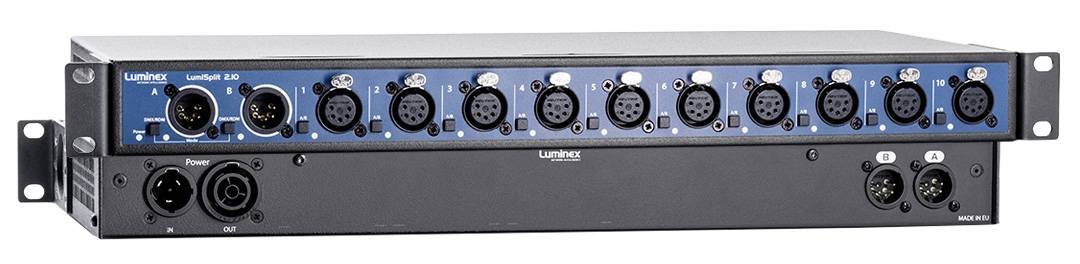

be mounted in a rack and will perfectly line up with a LumiSplit 2.10.
DMX features
Supported protocols DMX512 (1986 & 1990), DMX512-A, RDM ANSI E1.20, High End TalkBack...
Bidirectional Yes
DMX Port Termination/Biasing Yes
DMX port isolation Optical and galvanic isolation on each port
Load per DMX port Max. 32 devices per port
DMX zone selection Each connector can be assigned to the DMX line of its choice
DMX backup Yes
Physical characteristics
Height 44 mm
Width 482 mm
Depth 204.85 mm
Weight 2.54 kg
Metal case
Operating temperature 0 to +50 °C
Electrical characteristics
Power consumption 15W maximum
Max. power consumption Maximum 15A
Power supply Status LED
Power Input 100-240VAC, 50-60Hz
Power supply 1x Neutrik powerCON TRUE1 In/Out
Additional features
Optical isolation Up to 1000V
Galvanic isolation Up to 530V
Short circuit protection Yes
Dark mode Yes
Connections
DMX inputs 4 x Neutrik 5-pin XLR (male) (2 front, 2 rear)
DMX outputs 10 x Neutrik 5-pin XLR (female)
Input indication Status LED
Output indication Status LED
Environment
Humidity 5-95% non-condensing
Storage temperature -10 to +70 °C
