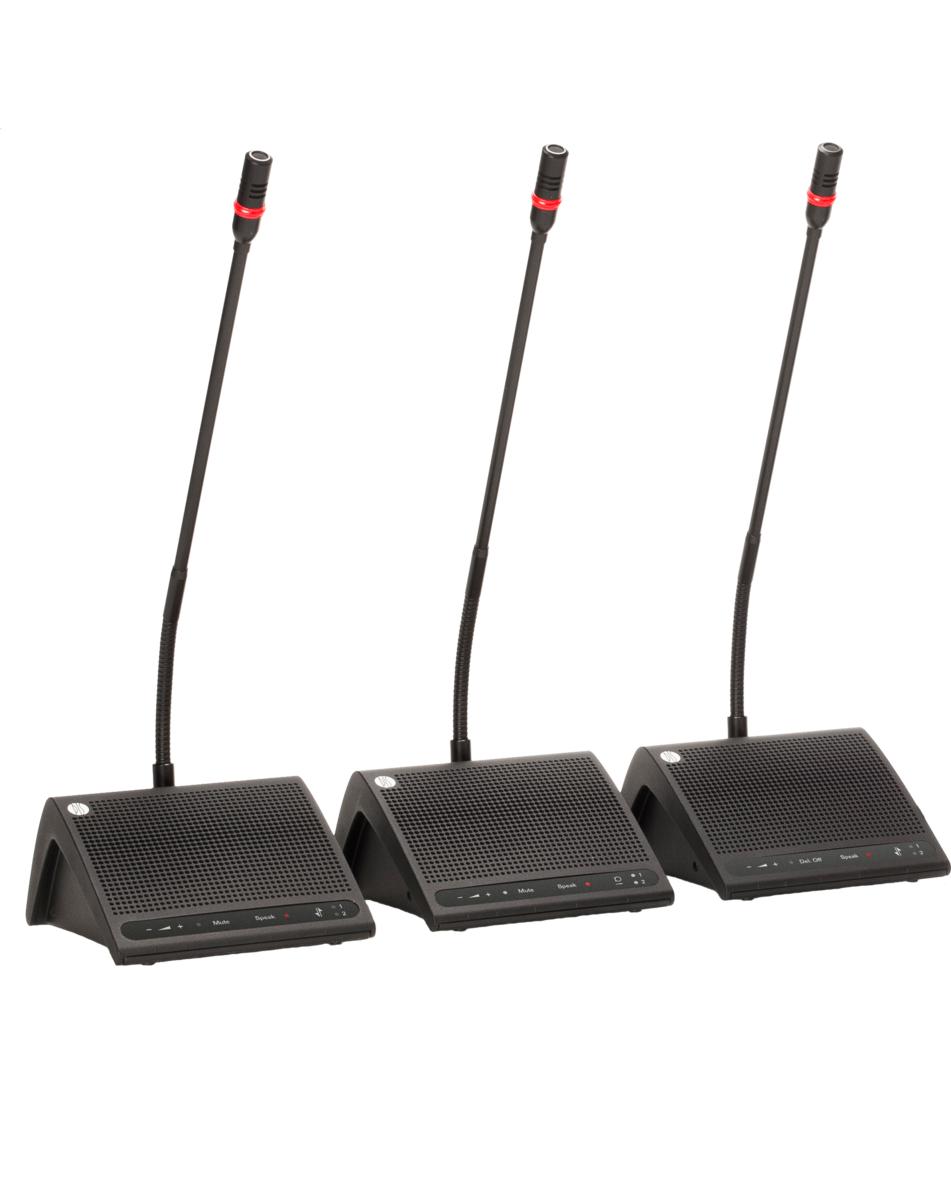

AudioShure Microfone DC5980P

Quantity
ex
Project List Available
"Standard discussion unit for chairmen, delegates or interpreters
Fully digital audio transmission
Daisy chain topology with loop through connections or star topology using junction boxes
DCS-LAN connection by use of CAT 5e (or higher) F/UTP or U/FTP cabling
Maximum 250 discussion units per system
Support for 4 microphone operation modes; Automatic, FIFO, Manual and VOX (voice activation)
Scrambled audio to prevent eavesdropping
Support for delegate interrupt ability modes enabling 'ping pong' mode
Auto off of microphones
Lockable XLR gooseneck microphone connector
1 high-quality loudspeaker
1 headphone connector with volume control supporting the floor channel
Microphone and function (all delegates off/mute) buttons
Exchangeable button overlay for changing the button labels to other languages and other functionality
Optional use of cable clamp to fix the DCS-LAN loop through cables"
"Electrical
Frequency response
(headphone) 65 Hz-16 kHz
Frequency range
(loudspeaker) 150 Hz-15 kHz
Power consumption 1.5 W
Power maximum
(loudspeaker) 2.1 W RMS
THD < 0.1 %
Signal-to-noise ratio > 85 dBA
Headphone connection 3.5 mm jack, female stereo
socket
Interconnections
DCS-LAN Two RJ45 female sockets with
auto-termination
Mechanical
Mounting Tabletop
Dimensions (H x W x D) 71 x 128 x 146 mm (2.8 x 5.0 x
5.75 in.)
Weight 500 g (1.1 lbs.
Color Black
Temperature range 5° to 40° C"
