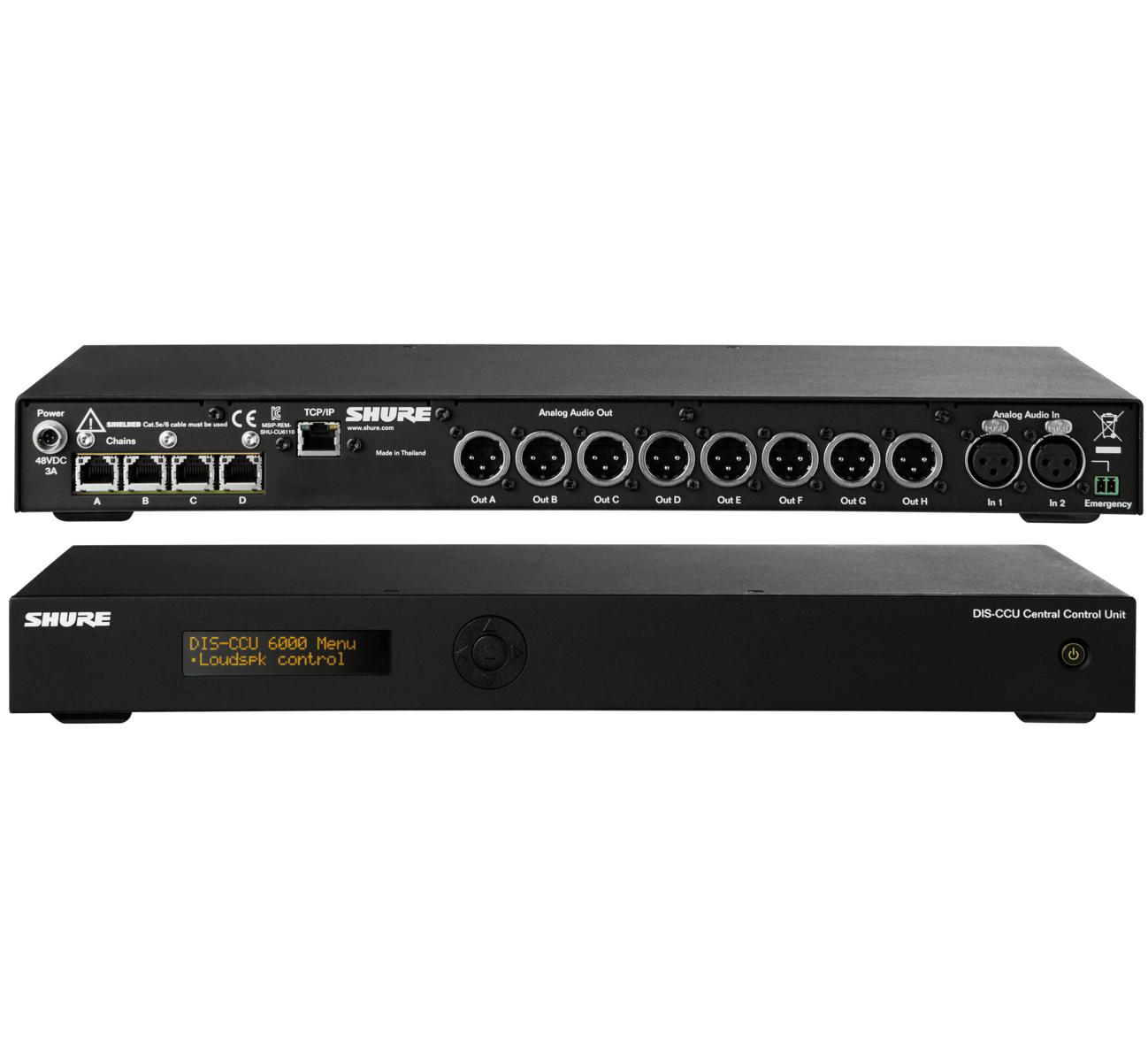

AudioDigital Discussion System DIS CCU-E Central Control Unit
Quantity
ex
Project List Available
Description
Characteristics
Share
Product file
"Central control unit for use with DDS5900 (standard) or MXC (requires optional feature license). In DDS5900 mode, powers up to 60 microphone units and supports up to 250 units. Also supports 2 language channels. Two analog audio inputs for external sources such as wireless microphones, and 8 analog audio outputs for connection to a video conferencing system, A/V recording equipment, an additional sound reinforcement system, or a wireless language distribution system.
With the FL6000 feature license, the DIS-CCU can be used with MXC and 6000 series units serving up to 250 participants and 4 language channels. Additional feature licenses support up to 3,800 participants and up to 31 languages."
With the FL6000 feature license, the DIS-CCU can be used with MXC and 6000 series units serving up to 250 participants and 4 language channels. Additional feature licenses support up to 3,800 participants and up to 31 languages."
"Audio
Audio inputs
Analog Input 1 One 3-pin female XLR socket
(electronically balanced)
Nominal input level (Input 1)
switchable:
•0 dBm (0.775V RMS)
•-10 dBm (0.245V RMS)
Max. input level +15 dBm (4.5V RMS)
Input Impedance 50-100 kΩ
Analog Input 2 (Audio In or
Emergency input - EEM)
One 3-pin female XLR socket
(electronically balanced) with
contact closure
Audio outputs
Analog audio out Eight (8) 3-pin male XLR sockets (electronically balanced)
Maximum load > 1 k ohm
Nominal output level 0 dBm at nominal input
Max. output level 4.9V RMS ~ +16 dBm
Electrical
Power consumption 22W/48V (150W max.)
Supply voltage for microphone units 122W/48V
Sound quality 24 bit audio, 32 kHz
sampling frequency
Frequency response 65 Hz-16 kHz
THD < 0.1 %
Signal-to-noise ratio > 85 dBA Mechanical
Mounting • tabletop
• standard 19"" rack
Dimensions (H x W x D) 44.4 x 426 x 186 mm
(1.75 x 16.8 x 7.2 in.)
Color Black
Weight 2.8 kg (6.17 lbs.)
Temperature range
Storage: -20° to 60° C,
10-80% humidity
Operation: 5° to 40° C,
35-80% humidity
PS CCU External Power Supply (SNP-A15T):
Main voltage 100-240 V, 50-60 Hz nominal
Max. consumption 175 W
Total supply power 144 W (power factor: >0.9)
Standby consumption <0.5 W (no load)
Supply voltage 48V/3A @ 40°C[1]
Efficiency 87%, typical
Inrush Current •230 V: <80 A
•115 V: <40 A"
