AudioLogitech Group - Conference System
Quantity
ex
Project List Available
Description
Characteristics
Share
Product file

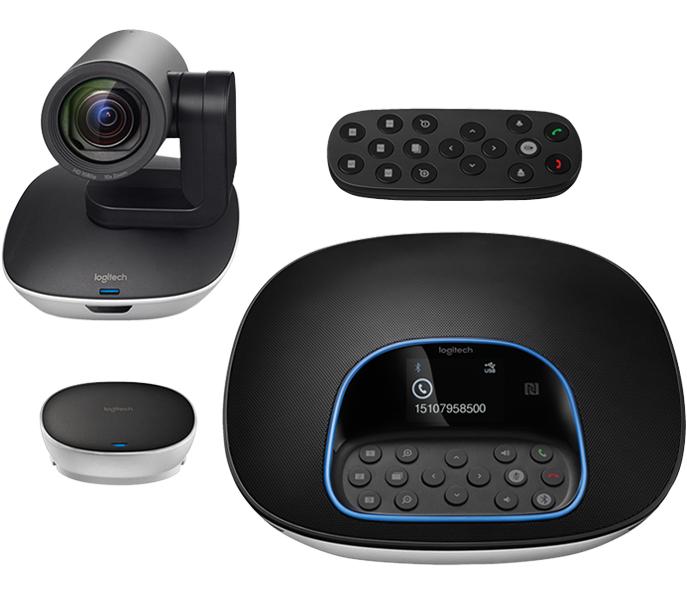

GROUP, our video conferencing solution for rooms that seat 14 to 20 people, provides high-quality HD video and crystal-clear sound, allowing any meeting space to become a video conferencing space. With advanced features like acoustic echo cancellation, noise reduction technology and intuitive controls, it's much easier to include all participants in the conversation
DIMENSIONS
Camera
Height: 130 mm
Width: 170 mm
Depth: 138 mm
Weight: 585 g
HANDS-FREE MODULE
Height: 240 mm
Width: 65 mm
Depth: 240 mm
Weight: : 1 223 g
Hub
Height: 94 mm
Width: 34 mm
Depth: 74 mm
Weight: 83 g
Remote control
Height: 50 mm
Width: 120 mm
Depth: 12 mm
Weight: 51 g
Wall/table mount
Height: 210 mm
Width: 120 mm
Depth: 99 mm
Weight: 255 g
Microphone extension (optional)
Height: 83 mm
Width: 83 mm
Depth: 21 mm
Weight: 230 g
SYSTEM REQUIREMENTS
Windows 7,8.1 or 10
macOS 10.10 or later
TECHNICAL SPECIFICATIONS
Camera
Smooth motorized zoom, tilt and pan, controlled by remote or from the base
Pan +/- 90
Tilt +35° / -45
10 x HD lossless zoom
Field of view
Diagonal: 90
Horizontal: 82.1
Vertical: 52.2° (see below)
Full HD 1080p 30 fps
H.264 UVC 1.5 with scalable video coding (SVC)
Auto focus
5 camera presets
Remote control (digital zoom panning) of ConferenceCam products (with supported services)
Kensington security slot
Video mute indicator light
Standard tripod thread
Remote control
Camera, speaker and call control
5 camera presets
Speaker docks
IR range of 8.5 m
CR2032 battery (included)
HANDS-FREE MODULE
Full duplex performance
Acoustic echo cancellation
Noise reduction technology
Ultra-wideband audio
Pairs with mobile devices via Bluetooth and NFC
LCD display to show caller ID, call duration and other functional responses
Indicator lights for handsfree, mute, hold and Bluetooth pairing
Touch buttons for call pickup/end, volume and mute, Bluetooth and camera controls
5 camera presets for pan, tilt and zoom settings
Kensington security slot
Microphones
Detection range: 6 m
Detection range with extended microphones: 8.5 m
Four omnidirectional microphones with beamforming technology
Frequency response: 100 Hz to 11 kHz
Sensitivity: -28 dB +/-3 dB
Distortion: <5% from 200 Hz
HUB / CABLES / POWER SUPPLY
Central hub connects and powers all components
Adhesive system for mounting under the table included
One cable for the camera: 5 m
One cable for the speaker: 5 m
Extension cables available: 10 and 15 m
USB cable for connection to PC/Mac: 2 m
Power adapter with regional plugs
Power cable: 3 m
SUPPORT
The dual-purpose stand works for both wall mounting and tabletop use.
COMPATIBILITY AND CERTIFICATIONS
Plug-and-play USB connectivity
Certified for Skype for Business and Teams compatible
Zoom Certified
Fuze Certified
Microsoft Cortana® certified
Cisco Jabber® certified
Compatible with BlueJeans, BroadSoft, GoToMeeting, Vidyo and other video conferencing, recording and broadcasting applications that support USB cameras
