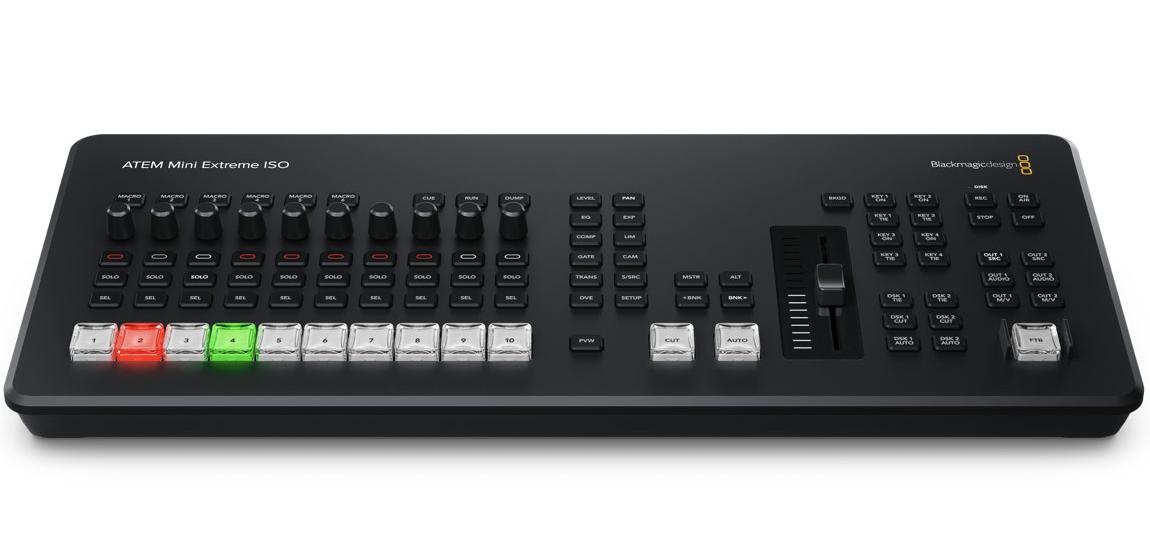

ATEM Mini Extreme ISO G2 is a powerful yet compact live switcher for building a high-end broadcast studio. Get an expanded professional style control panel with built in streaming, 8 standards converted HDMI inputs, 3 independent HDMI outputs, built in streaming engine, multi-view, CFexpress and Thunderbolt for record/playback. There is also 10G Ethernet for fast network storage access, XLR audio inputs, USB webcam, DVE, chroma key, media player and ISO recording of all 8 video inputs.
Product Specifics
Number of Mix Effects Rows
1
Direct Cross Points
10
Crosspoint Button Type
NKK Buttons
Preview Transition
1
Source Select Bus
Set using Multi Function Controls and Fairlight Audio Status Output.
Dedicated Macro Buttons
6
Transition Type Buttons
Set using Multi Function Controls and Fairlight Audio Status Output.
Transition Rate
Set using Multi Function Controls and Fairlight Audio Status Output.
Key Buttons
8
AUX Buttons
6
Fader Bar
1
Record Buttons
2
Stream Buttons
2
DSK Transition Selectors
6
Fade to Black Buttons
1 NKK button
Upstream Keyers
4
Downstream Keyers
2
Advanced Chroma Keyers
Up to 4
SuperSource
1
DVEs
2
Linear/Luma Keyers
Up to 4
Transition Keyer (Stinger/DVE)
DVE only
Color Generators
2
Control Panel
Set using Multi Function Controls and Fairlight Audio Status Output.
Routable Windows
16
Tally
Red for program and green for preview indication.
