Audio4061F DPA miniature microphone omni flesh low sense. 6mV/Pa BK JP12 red ring
Quantity
ex
Project List Available
Description
Characteristics
Share
Product file

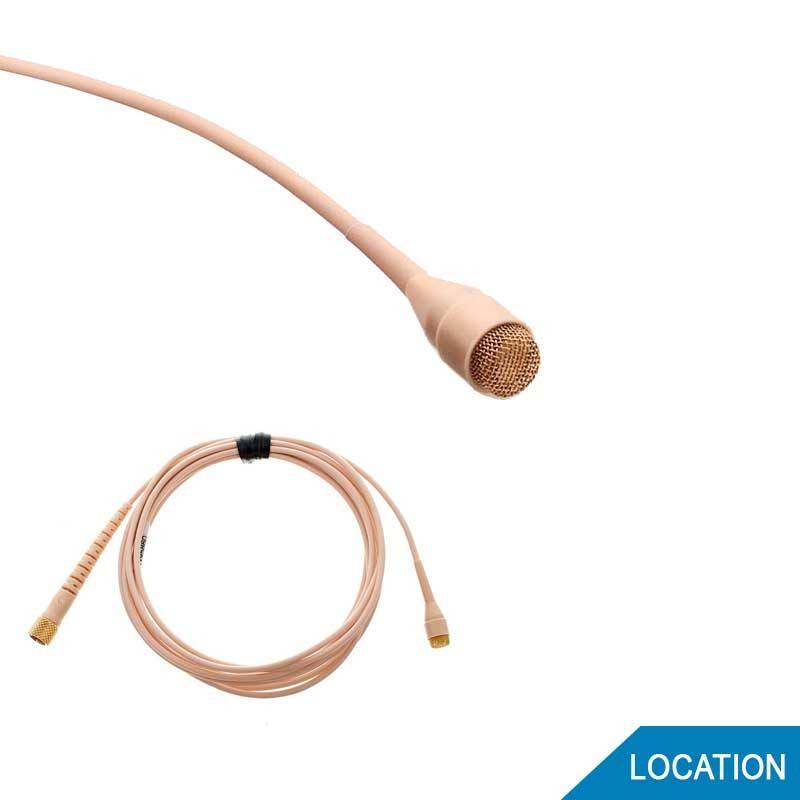

The Type 4061-F is the beige version of the Miniature Microphone Type 4061. This type is a prepolarized omnidirectional Miniature Condenser Microphone with a 5.4mm vertical diaphragm specially designed for maximum performance under the often difficult conditions when mounted directly on the human body. Special attention has been taken in the design to deal with the humidity problems that often occur in theatrical applications. A double vent protection system together with water resistant materials inside the microphone make it more than difficult for moisture to cause the Miniature Microphone to fail. By changing the protection grids, the Miniature Microphones can furthermore be acoustically modified according to the placement of the microphone on the body. Type 4061 is acoustically identical with the award winning Type 4060, but the sensitivity is adjusted to 6mV/Pa to match some of the more sensitive transmitters on the market. The noise floor of the Type 4061 is 26dB(A) re. 20 µPa and if powered correctly the microphone will be able to handle sound pressure levels up to 144dB SPL before clipping occurs. A wide range of connection adapters makes it possible to use the 4061 with nearly any professional wireless system available plus 48 V phantom.
Directionality: Omnidirectional/Frequency response, ± 2 dB:
Soft Boost grid: 20 Hz - 20 kHz, 3 dB boost from 8 to 20 kHz.
High Boost" grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz./
Sensitivity at 1 kHz, nominal value ±3 dB: 6 mV/Pa, i.e. -44 dB (ref. 1 V/Pa)/Equivalent noise level, A-weighted Typ. 26 dB(A) ref. 20 μPa (max. 28 dB(A))/S/N ratio, ref. 1 kHz at 1 Pa (94 dB SPL):68 dB(A)/Max SPL (peak) before clipping:144 dB/
(Legacy) Total harmonic distortion (THD):< 1% THD up to 123 dB SPL peak/(Legacy) Dynamic range:Typ. 97 dB/
(Core) Total harmonic distortion (THD):< 1% THD up to 137 dB SPL peak/(Core) Dynamic range:Typ. 111 dB/Supply voltage :
HF systems: 5 V mini, via DPA adapter. With DAD6001BC/DAD6024./
DAD4099-BC: 48 ±4 V phantom power for nominal performance/Cable length: 1.8 m
